Pump Test Rig

The Pump Test rig has been designed to demonstrate the operating characteristics of a series of different pumps. A self contained pump test rig, containing all the services and instrumentation for determining the characteristic curves of different pumps at different speeds.

• Testing of TLB PUMP for functionality at EOL in the assembly process.
• Connection of PUMP in the Specially designed Fixture and manifold with three hydraulic clamps.
• Internal connection of all delivery, return, relief, Torque suction and delivery ports of the TLB Pump.
• Engagement of Pump with vertically hydraulic driven AC motor.
• Testing with online monitoring & Logging of Flow and pressure at variable RPM with propositionally controlled pressure.
• Checking of relief valve cracking pressure.
• Barcode interfacing with Marking Machine.

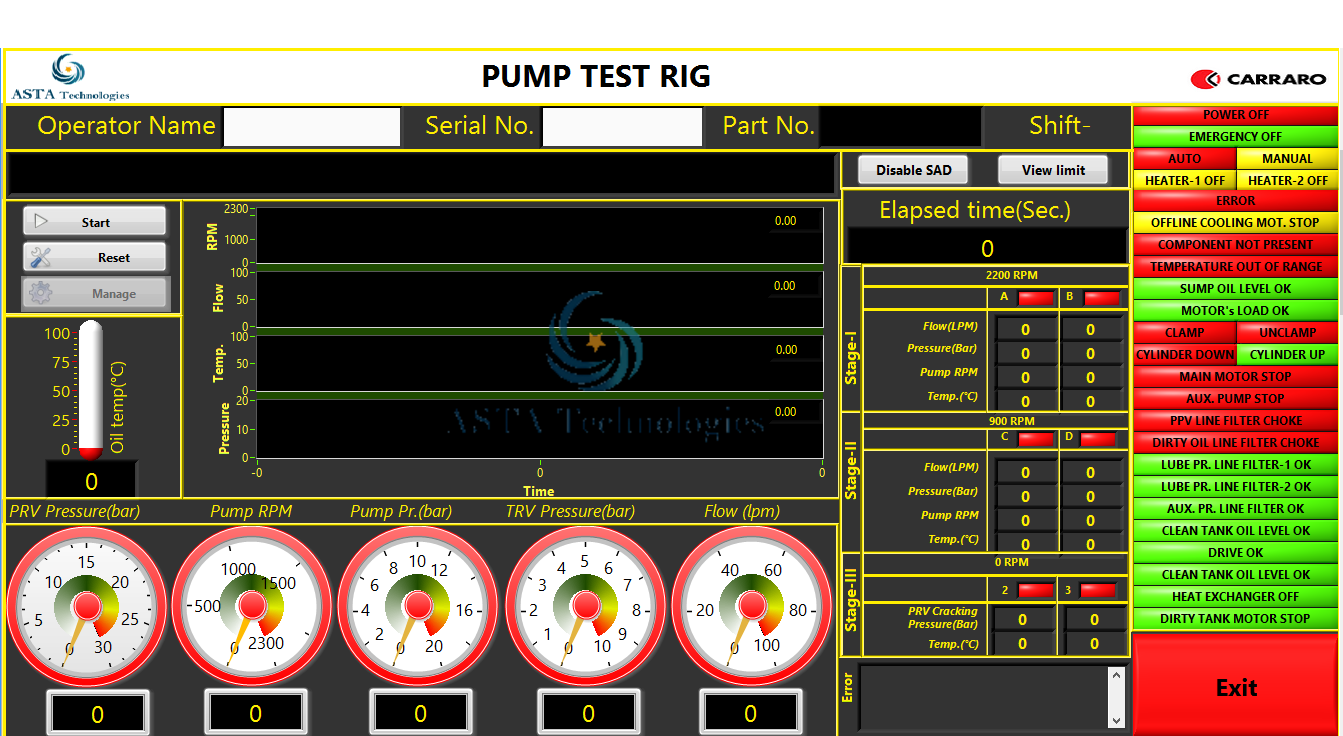

• Testing Software in LabVIEW with NI Hardware & IPC.
